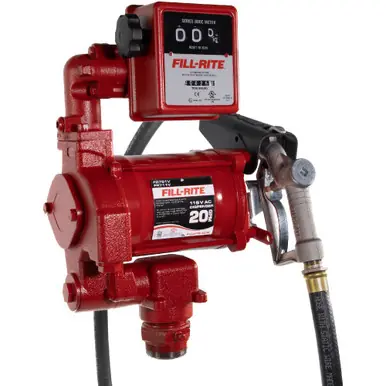

FILL-RITE FR701V – 115V 20 GPM Fuel Transfer Pump w/ Meter & Nozzle

FR701V 115V AC 20 Gpm Fuel Transfer Pump With Meter & Nozzle

The FR701V model is a 115V AC, 20 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, and installation components.

Features:

Industry Staple – our most popular AC pump that transfers fuel at 20 GPM, a tremendous entry-level option that is ideal for filling medium-sized equipment from aboveground storage tanks

Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

Long Life thermally-protected motor prevents overheating, ensuring your pump withstands the test of time

Cast-Iron Construction durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications

Reliable Technology proven for over 60 years, rotary vane technology produces consistent flow performance over the entire life of your pump

Specifications:

Catalog	3/4″ – Mechanical Meter & Manual Nozzle
Max Flowrate	20 GPM
Input Voltage Range (V)	115V AC
Max Current (A)	5.5 A
Duty Cycle (min)	30 min on / 30 min off
Discharge Head (ft)	53 ‘
Max Discharge Pressure (PSI)	23 PSI
Suction Lift (ft)	15 ‘
Inlet Size (in)	1.25 “
Inlet Thread	NPT
Outlet Size (in)	0.75 “
Outlet Thread	NPT
Mounting Size	2″
Mounting Thread	NPT
Mounting Type	Bung Mount
Meter	807C Mechanical Meter (Gallons)
Filter
DischargeHose	¾ X 12 UL Listed Hose with Static Ground Wire
Suction Hose
Swivel
Nozzle	¾ Cast Aluminum Manual Nozzle
Suction Pipe
Cable
Accuracy (+/- %)	0.01
Repeatibility (+/- %)	0.0038
Compatible Fluids	Diesel Heptane Kerosene Mineral Spirits Stoddard Solvents Gasoline up to E15 Biodiesel up to B20
Package Dimensions(in)	20.56 x 10.25 x 19.56
Gross Weight (lbs) (from SAP)	62.400 lbs
Certifications	cULus
