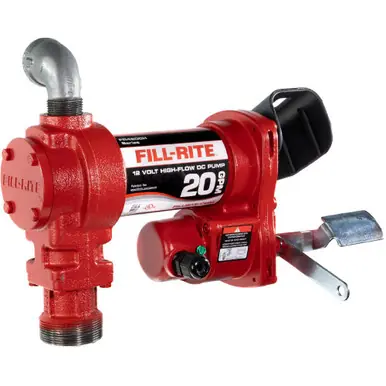

FILL-RITE FR4204H – 12V 20 GPM Fuel Transfer Pump

FR4204H 12V DC 20 Gpm Fuel Transfer Pump

The FR4204H model is a 12V DC, 20 GPM, heavy-duty fuel transfer pump. This model includes installation components and no additional accessories.

Features:

Cast-Iron Construction durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications

Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

Reliable On/Off Switch on/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use

Equipment Safeguard built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment

Long Life thermally-protected motor prevents overheating, ensuring your pump withstands the test of time

Easy Installation adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces

Specifications:

Catalog	Pump Only
Max Flowrate	20 GPM / 75 LPM
Input Voltage Range (V)	12V DC
Max Current (A)	19 A
Duty Cycle (min)	30 min on / 30 min off
Discharge Head (ft)	37 ‘
Max Discharge Pressure (PSI)	16 PSI
Suction Lift (ft)	8 ‘
Inlet Size (in)	1 “
Inlet Thread	NPT
Outlet Size (in)	1 “
Outlet Thread	NPT
Mounting Size	2″
Mounting Thread	NPT
Mounting Type	Bung Mount
Meter
Filter
DischargeHose
Suction Hose
Swivel
Nozzle
Suction Pipe
Cable
Compatible Fluids	Diesel Gasoline Mineral Spirits Biodiesel up to B20 Kerosene
Package Dimensions(in)	12.63″ x 6.63″ x 15.25″
Gross Weight (lbs) (from SAP)	22.500 lbs
Certifications	cULus
Warranty	Limited Lifetime
UPC	89404247945
