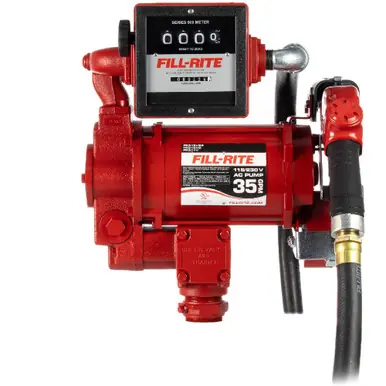

FILL-RITE FR311VB – 115/230V 35 GPM Fuel Transfer Pump w/ Meter & Nozzle

FR311VB 115/230V Ac 35 Gpm Fuel Transfer Pump With Meter & Nozzle

The FR311VB model is a 115/230V AC, 35 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, and installation components.

Features:

Leading Performance our highest volume AC pump that transfers fuel at 35 GPM, ideal for filling heavy equipment from aboveground storage tanks

Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

Flexible Power Input dual voltage design allows you to select either 115V or 230V AC power with the simple turn of a switch

Long Life thermally-protected motor prevents overheating, ensuring your pump withstands the test of time

Cast-Iron Construction durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications

Specifications:

Includes	Mechanical Meter & Diesel Automatic Nozzle
Max Flowrate	35 GPM
Input Voltage Range (V)	115V/230V AC
Max Current (A)
Duty Cycle (min)	30 min on / 30 min off
Discharge Head (ft)	60 ‘
Max Discharge Pressure (PSI)	26 PSI
Suction Lift (ft)	18 ‘
Inlet Size (in)	1.25 “
Inlet Thread	NPT
Outlet Size (in)	1 “
Outlet Thread	NPT
Mounting Size	2″
Mounting Thread	NPT
Mounting Type	Bung Mount
Meter	901C Mechanical Meter (Gallons)
Filter
DischargeHose	1 X 18 UL Listed Hose with Static Ground Wire
Suction Hose
Swivel
Nozzle	1 Ultra Hi-Flow Automatic Diesel Nozzle (Red)
Suction Pipe
Cable	Hard-Wire
Compatible Fluids	Diesel Biodiesel up to B20 Kerosene
Package Dimensions(in)	22.31 x 12.25 x 19.75
Gross Weight (lbs) (from SAP)	91.970 lbs
Certifications	cULus
Warranty	Limited Lifetime
UPC	89404090602
