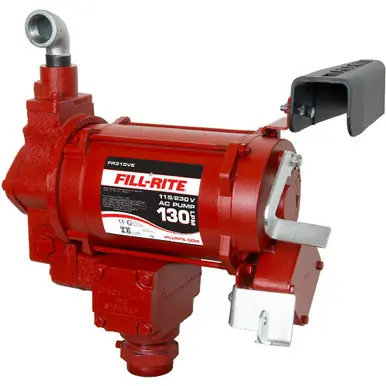

FILL-RITE FR310VEMN – 115/230V 35 GPM Fuel Transfer Pump

FR310VEMN 115/230V Ac 35 Gpm Fuel Transfer Pump

The FR310VEMN model is a 115/230V AC, 35 GPM, heavy-duty fuel transfer pump. This model includes installation components and no additional accessories.

Features:

Leading Performance our highest volume AC pump that transfers fuel at 35 GPM, ideal for filling heavy equipment from aboveground storage tanks

Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

Flexible Power Input dual voltage design allows you to select either 115V or 230V AC power with the simple turn of a switch

Long Life thermally-protected motor prevents overheating, ensuring your pump withstands the test of time

Cast-Iron Construction durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications

Specifications:

Includes	Pump Only, BSP Threads, ATEX Motor
Max Flowrate	35 GPM / 132 LPM
Input Voltage Range (V)	115V/230V AC
Max Current (A)	20 A
Duty Cycle (min)	30 min on / 30 min off
Discharge Head (ft)	60 ‘
Max Discharge Pressure (PSI)	26 PSI
Suction Lift (ft)	18 ‘
Inlet Size (in)	1.5 “
Inlet Thread	BSPP
Outlet Size (in)	1 “
Outlet Thread	BSPT
Mounting Size	2″
Mounting Thread	BSPT
Mounting Type	Bung Mount
Meter
Filter
DischargeHose
Suction Hose
Swivel
Nozzle
Suction Pipe
Cable
Compatible Fluids	Diesel Biodiesel up to B20 Kerosene
Package Dimensions(in)	22.31 x 12.25 x 19.75
Gross Weight (lbs) (from SAP)	73.400 lbs
Certifications	ATEX CE IECEx INMETRO
Warranty	Limited Lifetime
UPC	89404215753
