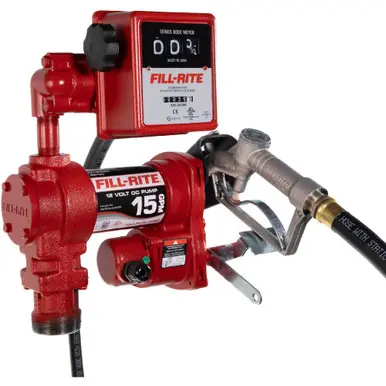

FILL-RITE FR1211H – 12V 15 GPM Fuel Transfer Pump w/ Meter & Nozzle

FR1211H 12V DC 15 Gpm Fuel Transfer Pump With Meter & Nozzle

The FR1211H model is a 12V DC, 15 GPM, heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a meter, hose, nozzle, suction pipe, and installation components.

Features:

Cast-Iron Construction durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications

Limited Lifetime Warranty we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your purchase and your business

Reliable On/Off Switch on/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use

Equipment Safeguard built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment

Long Life thermally-protected motor prevents overheating, ensuring your pump withstands the test of time

Easy Installation adjustable electrical junction box rotates 180° for added flexibility while wiring and improved installation in tight spaces

Specifications:

Catalog	Mechanical Meter (Gallons), Manual Nozzle
Max Flowrate	15 GPM
Input Voltage Range (V)	12V DC
Max Current (A)	20 A
Duty Cycle (min)	30 min on / 30 min off
Discharge Head (ft)	37 ‘
Max Discharge Pressure (PSI)	16 PSI
Suction Lift (ft)	8 ‘
Inlet Size (in)	1 “
Inlet Thread	NPT
Outlet Size (in)	0.75 “
Outlet Thread	NPT
Mounting Size	2″
Mounting Thread	NPT
Mounting Type	Bung Mount
Meter	807C Mechanical Meter (Gallons)
Filter
DischargeHose	¾ X 12 Hose with Static Ground Wire
Suction Hose
Swivel
Nozzle	¾ Cast Aluminum Manual Nozzle
Suction Pipe	20 34 ½ Steel Telescoping Suction Pipe
Cable	2-Wire 12 GA, 18′ Power Cable
Accuracy (+/- %)	0.01
Repeatibility (+/- %)	0.0038
Compatible Fluids	Biodiesel up to B20 Diesel Gasoline up to E15 Kerosene Mineral Spirits
Package Dimensions(in)	21.81″ x 10″ x 19.81″
Gross Weight (lbs) (from SAP)	37.000 lbs
Certifications	cULus
