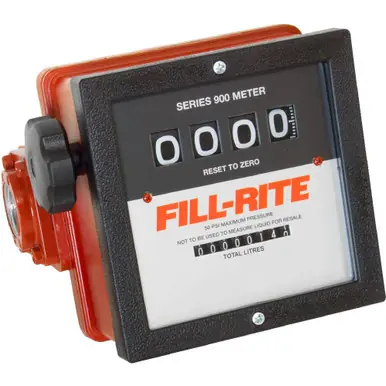

FILL-RITE 901CL – 23-151 LPM 4-Digit Mechanical Fuel Transfer Meter

901CL 23-151 Lpm 4-Digit Mechanical Fuel Transfer Meter

The 901CL is a 4-digit mechanical fuel transfer meter. This meter is equipped with NPT threads and is designed to register 23-151 liters per minute at +/- 2% accuracy. This model does not include additional installation components.

Features:

Versatile Technology designed with nutating disc technology that is capable of moving rust and small debris that jam and cause damage to other meters

Lifetime Tracking 7-digit non-resettable counter tracks total volume transferred over lifetime of meter

Low-Volume Applications 4-digit counter registers flow rates between 23-151 LPM and up to 999.9 liters per batch, perfect for heavy equipment with large fuel tanks

Extreme Accuracy measures fuel within +/- 2% accuracy, ensuring your record-keeping is precise as possible

Cast-Aluminum Construction built to last with rugged cast-aluminum construction, designed for maximum durability and lifetime corrosion resistance

Specifications:

Catalog	1″ Mechanical Meter (Liters)
Technology	Nutating Disc
Flowrate Range	23-151 LPM
Operating Temperature Range	-15 – 150°F / -26 – 66°C
Accuracy (+/- %)	0.02
Repeatibility (+/- %)	0.0038
Display Digits	4
Inlet Size (in)	1 “
Inlet Thread	NPT
Outlet Size (in)	1 “
Outlet Thread	NPT
Compatible Fluids	Diesel Gasoline Heptane Hexane Kerosene Mineral Spirits
Package Dimensions(in)	7.25 x 7.38 x 10.5
Gross Weight (lbs) (from SAP)	8.100 lbs
Certifications	CE cULus ATEX
Warranty	2 Years
UPC	89404080429
