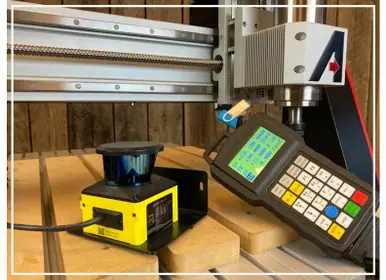

Axiom ALS468 – Laser Safety Scanner

The AX9-ALS468 Axiom Laser Safety Scanner is a cutting-edge safety solution designed for CNC routers, offering an innovative approach to machine safety without compromising accessibility or increasing machine size.

Key Features:

• Invisible Safety Boundary: Creates a non-intrusive safety zone around the CNC router
• Automatic Detection and Shutdown: Immediately responds to safety zone breaches
• LED Status Indicators: Provides clear visual feedback on safety status
• Compatibility: Suitable for manufacturing facilities, classrooms, or home shops
• Non-Intrusive Design: Eliminates the need for bulky physical enclosures

Status	System Response
Safety Zone Breach	• LED turns RED • CNC router pauses • Tool stops spinning • Cutting bit raises automatically
All Clear	• LED returns to GREEN • One-touch program resume

Additional Features:

• Easy Activation: Simple keyed switch activation
• Continuous Monitoring: Scans a two-meter perimeter marked by yellow caution tape
• Quick Resumption: Operations can resume with a tap of the run button after safety clearance

Installation Requirements:

• 4-meter by 4-meter unobstructed area
• Factory installation only (available exclusively with new machine orders)
• CNC router must be positioned against a wall or partition Package Includes: • LASER SAFETY SCANNER unit
• Yellow caution tape
• DSP control pendant pedestal

Important Notes:

• Not available for retrofit on existing machines
• Requires an unobstructed operational area
• Not engineered to meet specific safety standards; users should check local regulations

The AX9-ALS468 Axiom Laser Safety Scanner offers a sophisticated safety solution for CNC router operations, balancing high safety standards with operational efficiency and workspace flexibility. Its non-intrusive design and automatic response system make it an ideal choice for various environments where traditional enclosures may be impractical or undesirable.
