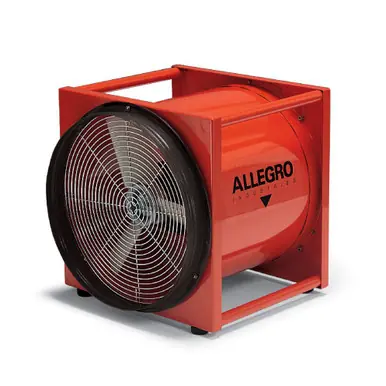

ALLEGRO 9525-E – 20″ Axial AC Standard Metal Blower (220V AC/50 Hz). Does Not Meet CSA C22.2 No. 113

ALLEGRO 9525-E – 20 Axial AC Standard Metal Blower (220V AC/50 Hz). Does Not Meet CSA C22.2 No. 113 Requirements.

Ideal for applications requiring a maximum amount of airflow in hazardous locations

Designed for applications requiring a maximum amount of output. Housing is made from 16-gauge cold rolled steel and powder-coated in a “safety orange” color that holds a three-blade impeller. It features an interchangeable flange for intake or exhaust mounting, integrated carry handles for easy transport, a steel/zinc plated grill and 4 rubber feet. UL Listed. Certified to CSA Standard C22.2 No.113.

Features:

1/2 HP

Available in US and International wiring configurations

UL Recognized, CSA Certified

16-gauge cold rolled steel housing

Integrated carrying handles

Powder-coated in "safety orange"

Glass reinforced Polypropylene (PPG) three blade fan with
aluminum hub

Made in USA

Interchangeable flange

Benefits:

Interchangeable flange for intake or exhaust side mounting

Integrated carry handles for easy transport to/from job site

Blower delivers high output for drawing or pushing air for
added worker convenience

The durable and tough metal housing can withstand the
harshest of work conditions

Applications:

Construction

Industrial

Manufacturing

Confined Space

Specifications:

Country Of Origin	USA
Blower Motor Hp	1/2
Blower Cfm	4650.0
Blower M3 Per Hour	7900.0
Blower M3 Per Min	132.0
Blower Cfm 1 Bend Duct	3150.0
Blower M3 Per Hour 1 Bend Duct	5352.0
Blower Cfm 2 Bend Duct	2950.0
Blower M3 Per Hour 2 Bend Duct	5012.0
Blower Electrical Current	220V AC, 50 Hz
Blower Duct	Not Included
Blower Configuration	AC
Blower Housing	Metal
Blower Design	Axial
Blower Phase	Single
Fit For Hazardous Locations	No
Blower Diameter	20"/50.8cm
Blower Respiratory European Version 220v	Yes
CE Certified	No
Intertek CSA Certified	No
