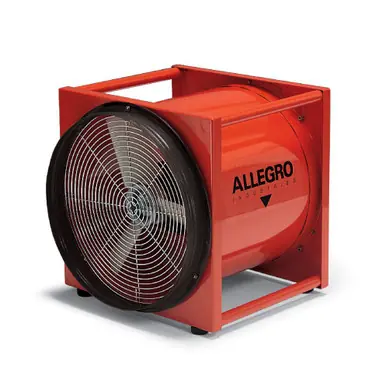

ALLEGRO 9525-50EX – 20″ Axial Explosion-Proof (Ex) High Output Metal Blower

ALLEGRO 9525-50EX – 20 Axial Explosion-Proof (Ex) High Output Metal Blower

20 Axial explosion-proof (EX) high output metal blower

Powered by a 1 1/2 HP, 3450 RPM motor, this blower is designed for applications requiring a maximum amount of output. The housing is made from 16-gauge cold rolled steel and powder-coated in a “safety orange” color. It includes a 3-blade impeller, 125V plug, interchangeable flange for intake or exhaust mounting, integrated carry handles for easy transport, and a steel/zinc plated grill. NOTE: Explosion-proof blowers require an explosion-proof socket.

Features:

1-1/2 HP

Available in both US and International wiring configurations

Epoxy powder-coated in "safety orange"

UL Recognized, CSA Certified

16-gauge cold rolled steel housing

Integrated carrying handles

Meets Class I, Division 1 and 2, Groups C & D, Class II
Division 1 and 2 Groups F & G.

Interchangeable flange

Anti-Static glass reinforced polyamide (PAGAS) three blade
fan with aluminum hub

Made in USA

Benefits:

Interchangeable flange for intake or exhaust side mounting

Blower delivers high output for drawing or pushing air for
added worker convenience

Integrated carry handles for easy transport to work site

The durable and tough metal housing can withstand the
harshest of work conditions

Applications:

Construction

Industrial

Manufacturing

Confined Space

Specifications:

Country Of Origin	USA
Blower Motor Hp	1 1/2
Blower Cfm	6468.0
Blower M3 Per Hour	10989.0
Blower M3 Per Min	183.0
Blower Cfm 1 Bend Duct	4314.0
Blower M3 Per Hour 1 Bend Duct	7329.0
Blower Cfm 2 Bend Duct	3922.0
Blower M3 Per Hour 2 Bend Duct	6663.0
Blower Electrical Current	115V/208V-230V AC, 60 Hz
Blower Duct	Not Included
Blower Configuration	EX
Blower Housing	Metal
Blower Design	Axial
Blower Phase	Single
Fit For Hazardous Locations	Yes
Blower Diameter	20"/50.8cm
Blower Respiratory European Version 220v	No
CE Certified	No
Intertek CSA Certified	No
