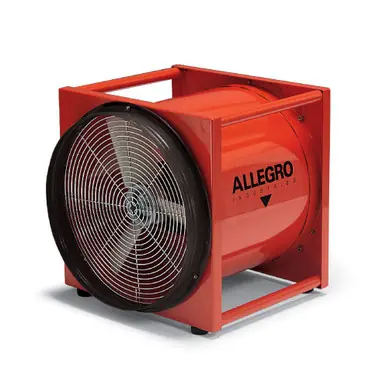

ALLEGRO 9525-01 – 20″ Axial Explosion-Proof (Ex) Metal Blower

ALLEGRO 9525-01 – 20 Axial Explosion-Proof (Ex) Metal Blower

Ideal for applications requiring a large amount of airflow in hazardous locations

Designed for use in applications requiring a large amount of output in a hazardous location environment. ALLEGRO’s 20 Axial Explosion-Proof Metal Blower is offered with a ½ hp single-phase motor and an efficient three-blade impeller fan in a rugged metal housing. Also included is a NEMA rated 115V plug to be used with an explosion-proof socket (sold separately). Meets Class I, Division 1 and 2, Groups C & D, Class II Division 1 and 2 Groups F & G. UL Listed. Certified to CSA Standard C22.2 No.113. NOTE: Explosion-proof blowers require an explosion-proof socket.

Features:

1/2 HP

Available in US and International wiring configurations

Certified to CSA Standard C22.2 No 113.

Epoxy powder-coated in "safety orange"

16-gauge cold rolled steel housing

Integrated carrying handles

Meets Class I, Division 1 and 2, Groups C & D, Class II
Division 1 and 2 Groups F & G.

Anti-Static glass reinforced polyamide (PAGAS) three blade
fan with aluminum hub

Made in USA

Interchangeable flange

Benefits:

Interchangeable flange for intake or exhaust side mounting

Blower delivers high output for drawing or pushing air for
added worker convenience

Integrated carry handles for easy transport to work site

The durable and tough metal housing can withstand the
harshest of work conditions

Applications:

Construction

Industrial

Manufacturing

Confined Space

Specifications:

Country Of Origin	USA
Blower Motor Hp	1/2
Blower Cfm	4650.0
Blower M3 Per Hour	7900.0
Blower M3 Per Min	132.0
Blower Cfm 1 Bend Duct	3150.0
Blower M3 Per Hour 1 Bend Duct	5352.0
Blower Cfm 2 Bend Duct	2950.0
Blower M3 Per Hour 2 Bend Duct	5012.0
Blower Electrical Current	115V-230V AC, 60 Hz
Blower Duct	Not Included
Blower Configuration	EX
Blower Housing	Metal
Blower Design	Axial
Blower Phase	Single
Fit For Hazardous Locations	Yes
Blower Diameter	20"/50.8cm
Blower Respiratory European Version 220v	No
CE Certified	No
Intertek CSA Certified	Yes
